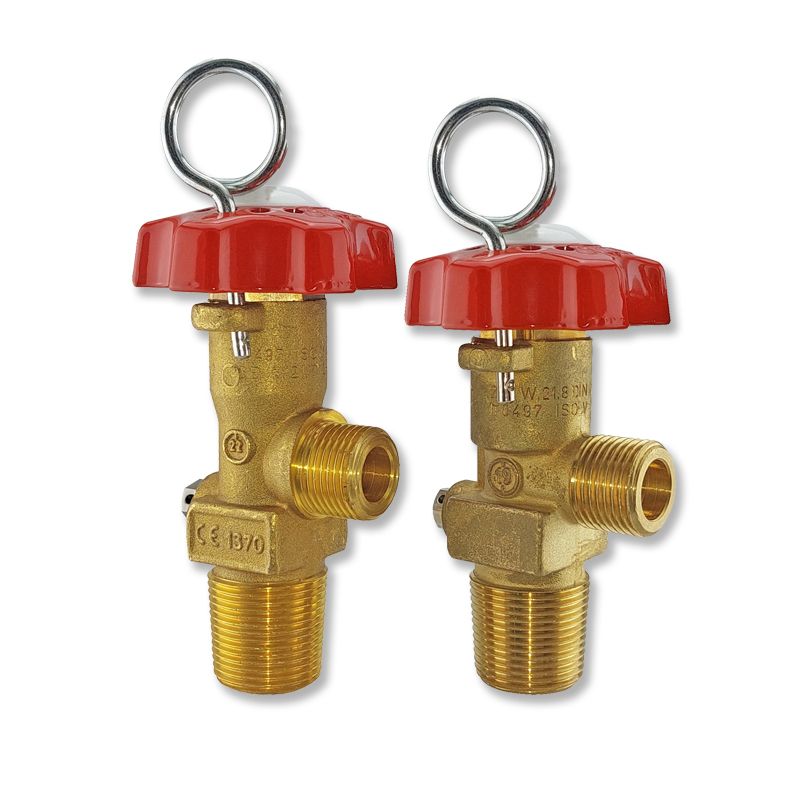

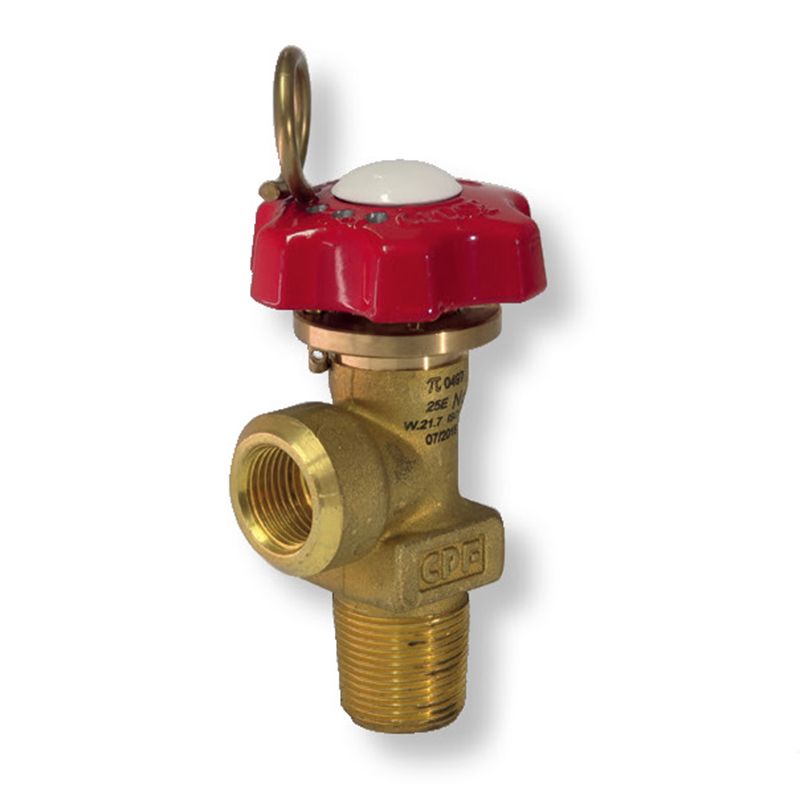

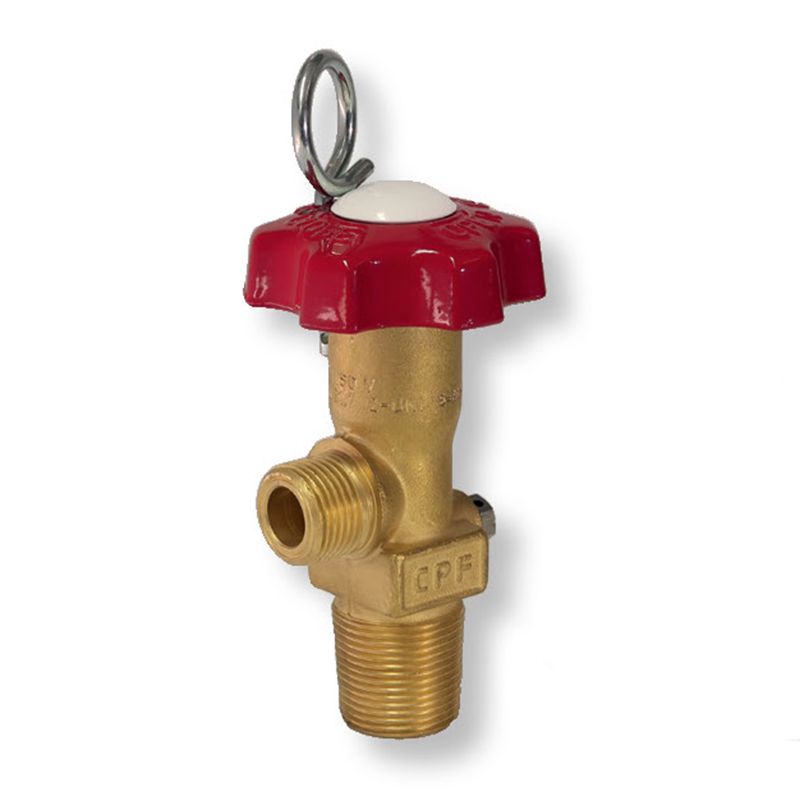

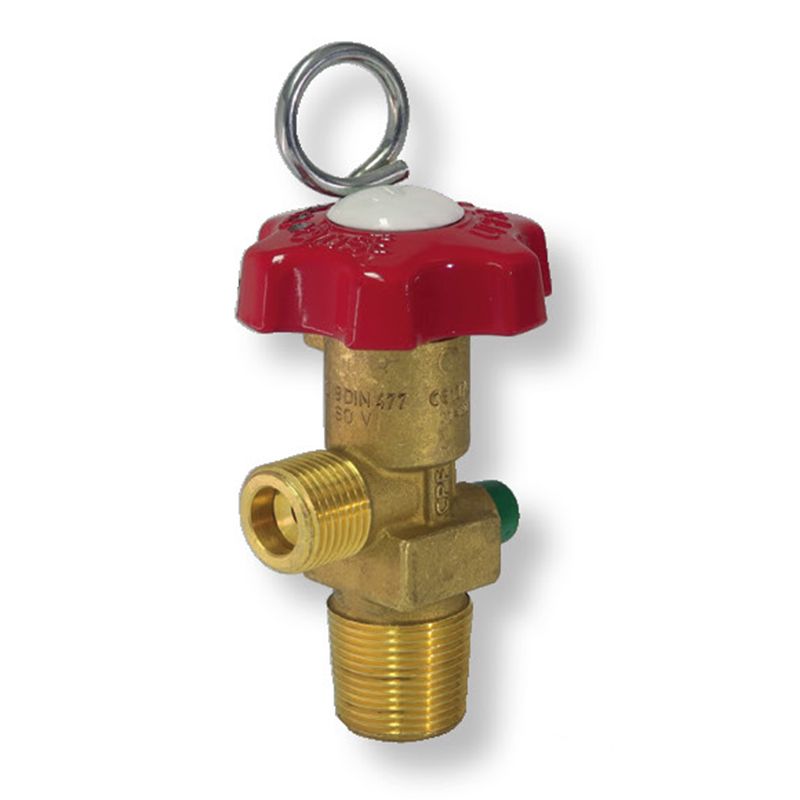

Handweel valves for CO2 and N2 wheeled fire extinguishers

The handweel valves for wheeled CO2 and N2 extinguishers are rotary disc devices that enable rapid control of the gas flow. Equipped with T-PED certification, they ensure safety and regulatory compliance, providing im… See more...

Request informations

Standard Specifications

Inlet : 25E

Valve body ST-CW617N brass according to the UNI EN 12165

Alluminium Handwhell polyester transparent painted (EN-AB 46100)

O-rings EPDM (EP_851)

Antifriction seal DELRIN

Bursting disc Nickel (UNI EN 4126)

Lubricant FLUORCARBON GEL 885

Equipped with T-PED certification

Options

Only for CO2 valve:

Connection available: 25P - 1"NGT
Dip tube connection available: G.3/8" - M.14x1,5
Safety disc available in various calibrations

Nitrogen valve with safety disc 250bar available on request

Standard : UNI / DIN

Available SMART series:
Lighter than valve for wheeled fire extinguishers already in our range of products by always mantaining the same technical spefications and the hight quality standard

Downloads

Code	Inlet	Outlet	Dip Tube Connection	Safety Device calibration	Standard	Finishing	Outlet connection type	A (mm)	B (mm)
6121900034	25E	W.21.7	G.3/8"	185 bar	UNI	Brass	Male	145	62,5
6121900091	1” 11,5 NGT	W.21.8	G.3/8"	250 bar	DIN	Brass	Male	145	62,5
6121900094	25E	W.21.8x1/14"	G.3/8"	250 bar	DIN	Brass	Male	145	62,5
6121900097	25E	W.21.7	G.3/8"	185 bar	UNI	Brass	Male	135	62,5
6121900098	25E	W.21.8	G.3/8"	250 bar	DIN	Brass	Male	135	62,5
6121900099	25E	W.24.32		250 bar	DIN	Brass	Female	135	62,5
7620900035	25E	W.21.7			UNI	Brass	Female	135	62,5
