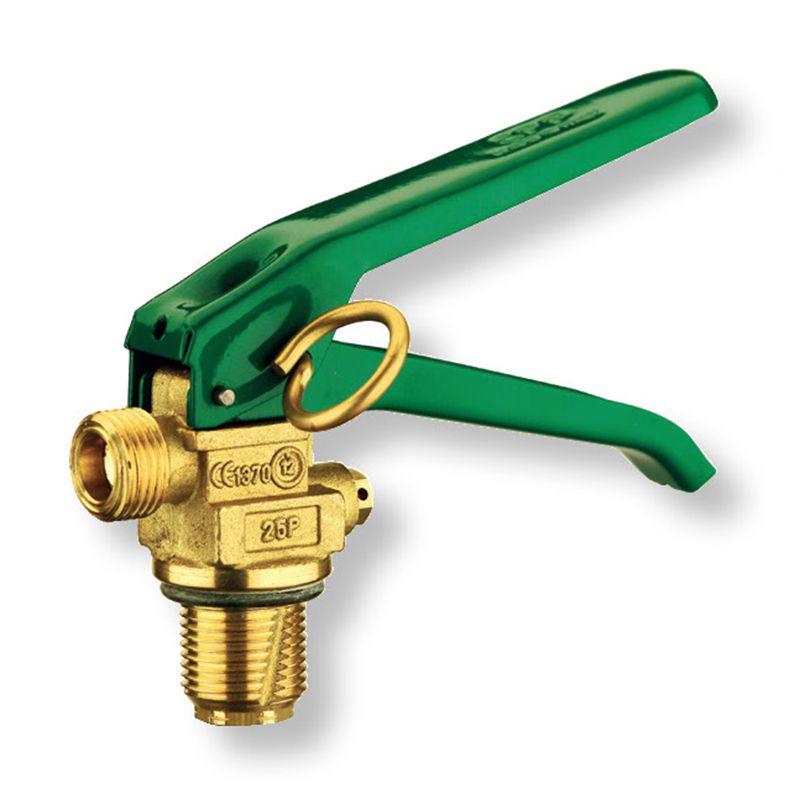

    Squeeze-grip NON-MAGNETIC valve

    The CO₂ non-magnetic valve, free of ferromagnetic components, prevents electromagnetic interference and is ideal for high-precision environments. It is used in scientific analyses, medical devices, and industrial processes where… See more...
    Request informations
    Standard Specifications
    Finishing : Brass
    Frontal outlet
    Options
    Inlet : Conical ( 25E ) / Cylindrical ( 25P )
    Standard : UNI / NF / DIN /BSi
    Safety disc available in various calibrations on request
    Dip tube connection : G.1/4" / M.10x0.75 / M.10x1
    Downloads
    To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.

    Code Outlet Dip Tube Connection Safety Device calibration Standard
    6020900149 G.1/4" G.1/4" 215 bar NF
    6020900174 W.21.7 M.10X1 185 bar UNI
    6020900208 G.1/4" G.1/4" 200 bar UNI
    6020900235 G.1/4" G.1/4" 215 bar UNI
