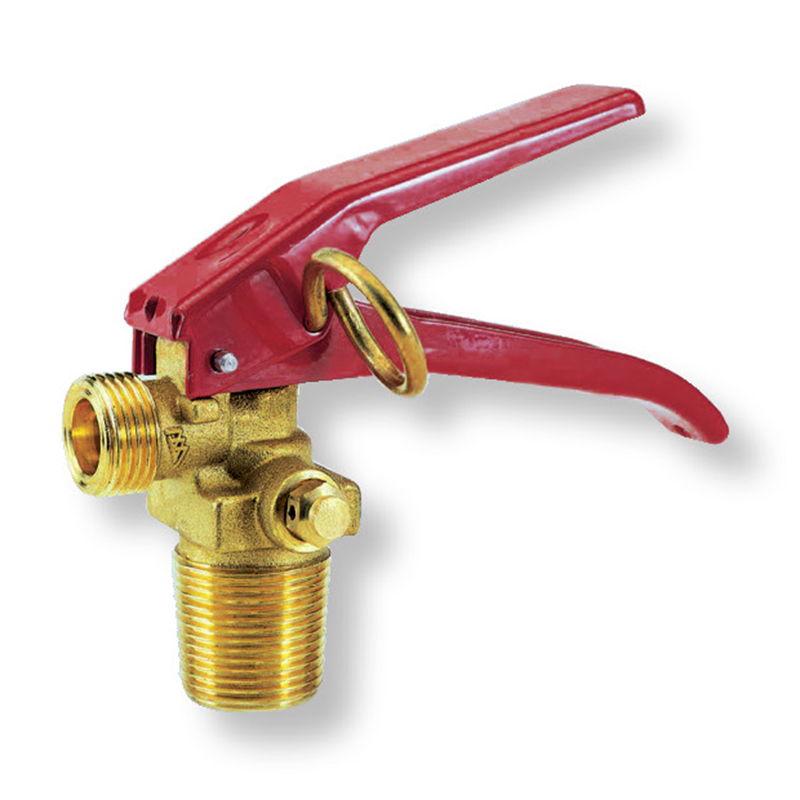

Squeeze-grip series EASY CO2 valve
The CO2 EASY squeeze-grip valve for fire extinguishers differs from the CO squeeze-grip valve in that it is lighter and has a different seal. It remains an essential component to ensure safety in the event of a fire. See more...
The CO2 EASY squeeze-grip valve for fire extinguishers differs from the CO squeeze-grip valve in that it is lighter and has a different seal. It remains an essential component to ensure safety in the event of a fire.
Standard Specifications
Valve body ST-CW617N brass according to the UNI EN 12165
Bursting disc Nickel (UNI EN 4126)
Finishing : Brass
Frontal outlet
Options

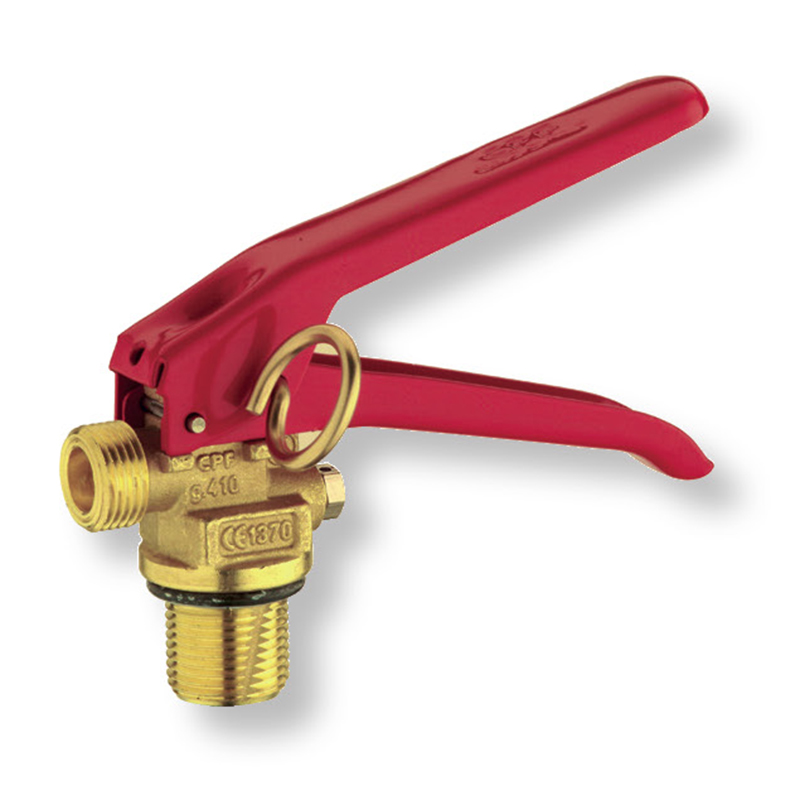

Inlet : Conical ( 25E ) / Cylindrical ( 25P )
Safety device : Front / Side
Dip tube connection : M14x1,5 / M.10x0.75 / M.10x1
Safety disc : Front / Side (only for 25E)
Bursting disc available in various calibrations on request
Standard : UNI / DIN
To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.
| Code | Inlet | Outlet | Dip Tube Connection | Safety Device calibration | Standard | Outlet version | Control Type |
|---|---|---|---|---|---|---|---|
| 6020900032 | 25E | W.21.7 | M.14x1.5 | 185 bar | UNI | Front-outlet | Squeeze-grip |
| 6020900172 | 25E | M.14x1.5 | M.14x1.5 | 185 bar | UNI | ||
| 6020900211 | 25E | M.14x1.5 | M.14x1.5 | 215 bar | UNI |
