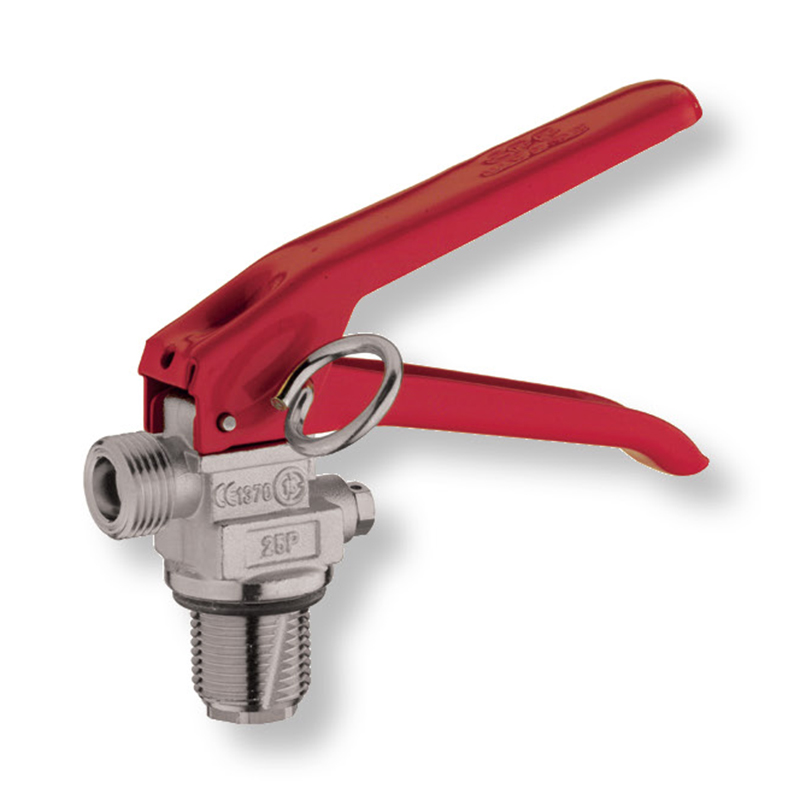

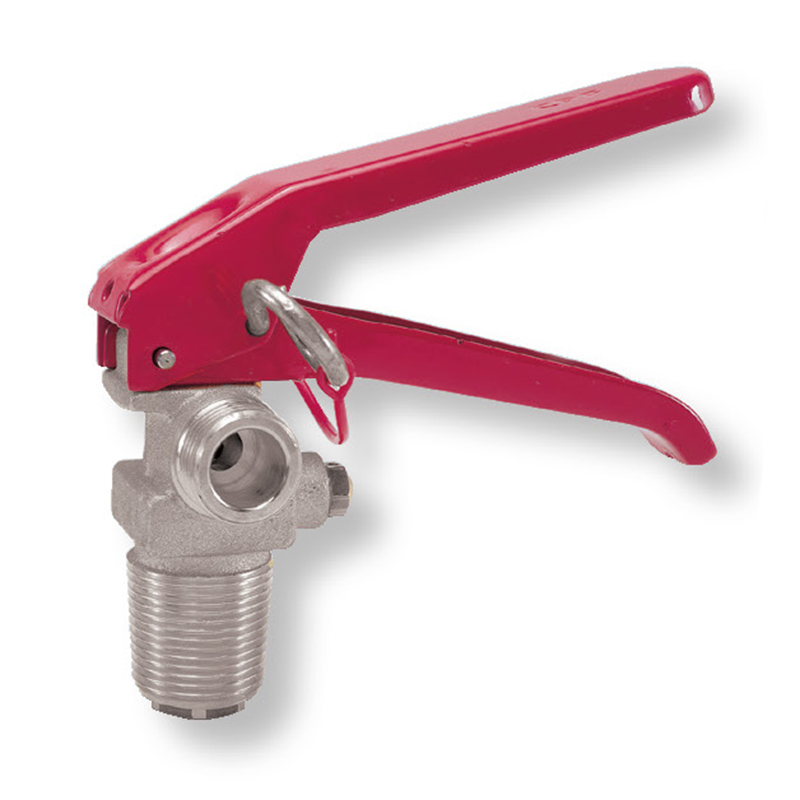

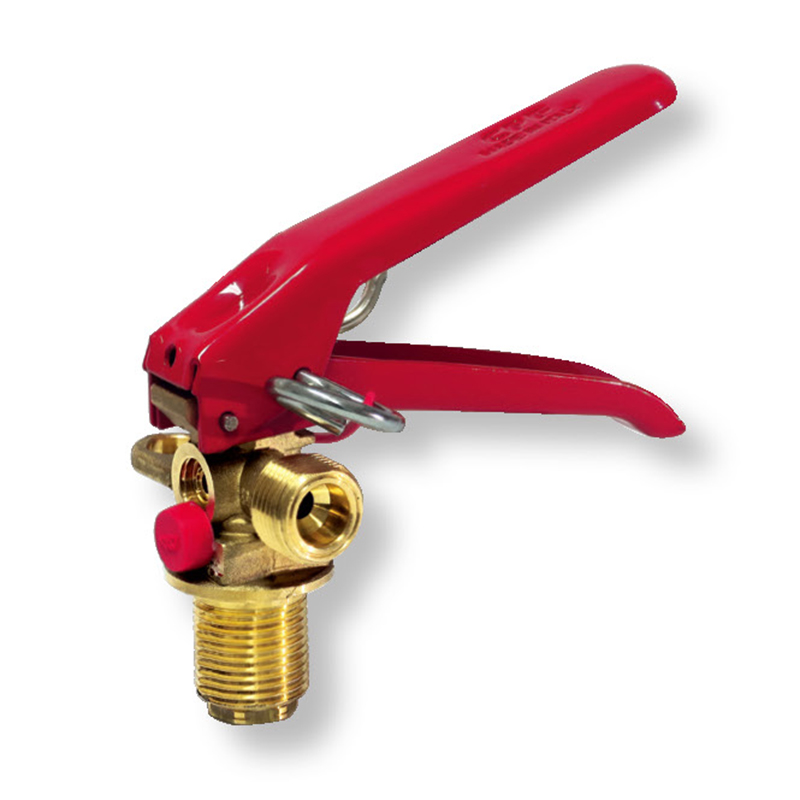

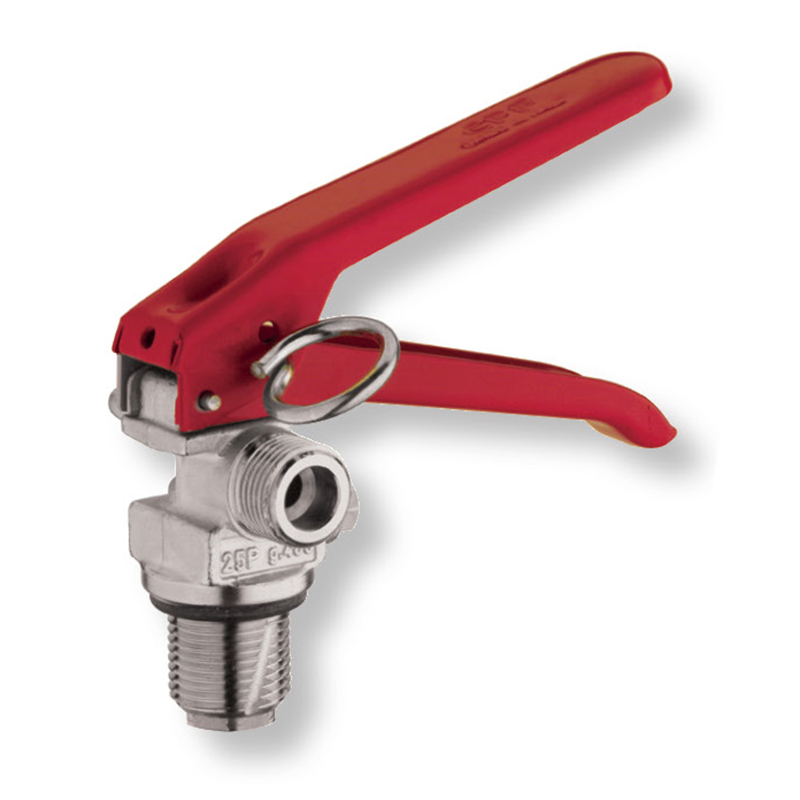

Squeeze-grip valve CO2

Name: Squeeze-grip valve CO2
Brand: CPF Industriale
SKU: 2106
Availability: InStoreOnly

The CO2 fire extinguisher button valve is an essential component for ensuring fire safety. Available with either a conical or cylindrical connection, it can easily be adapted to location requirements, and the presence of either a… See more...

Request informations

Options

Finishing : Brass / Nickel-plated brass

Inlet : Conical ( 25E ) / Cylindrical ( 25P )

Outlet : Front / Side

Safety device : Front / Side

Dip tube connection : G.1/4" / M.10x0.75 / M.10x1

Standard : UNI / NF / DIN /BSi

Safety disc available in various calibrations on request

Downloads

Code	Inlet	Outlet	Dip Tube Connection	Safety Device calibration	Standard
6020900016	25P	M.10X1	M.10X1	185 bar	UNI
6020900030	25E	W.21.7	G.1/4"	185 bar	UNI
6020900036	25E	G.1/4"	G.1/4"	250 bar	UNI
6020900044	6°38	G.1/4"	G.1/4"	200 bar	NF
6020900068	25P	G.1/4"	G.1/4"		UNI
6020900133	25E	G.1/4"	G.1/4"	215 bar	NF
6020900171	25P	G.1/4"	G.1/4"	210 bar	UNI
6020900185	25E	M.10X0.75	M.10x0.75	210 bar	DIN
6020900186	25P	M.10X0.75	M.10x0.75	210 bar	DIN
6020900188	25E	M.10X0.75	M.10x0.75	250 bar	DIN
6020900195	25E	G.1/4"	G.1/4"	200 bar	NF
6020900201	25E	M.10X1	M.10X1	250 bar	DIN
6020900234	25E			185 bar	UNI
6020900254	25P			195 bar	UNI
