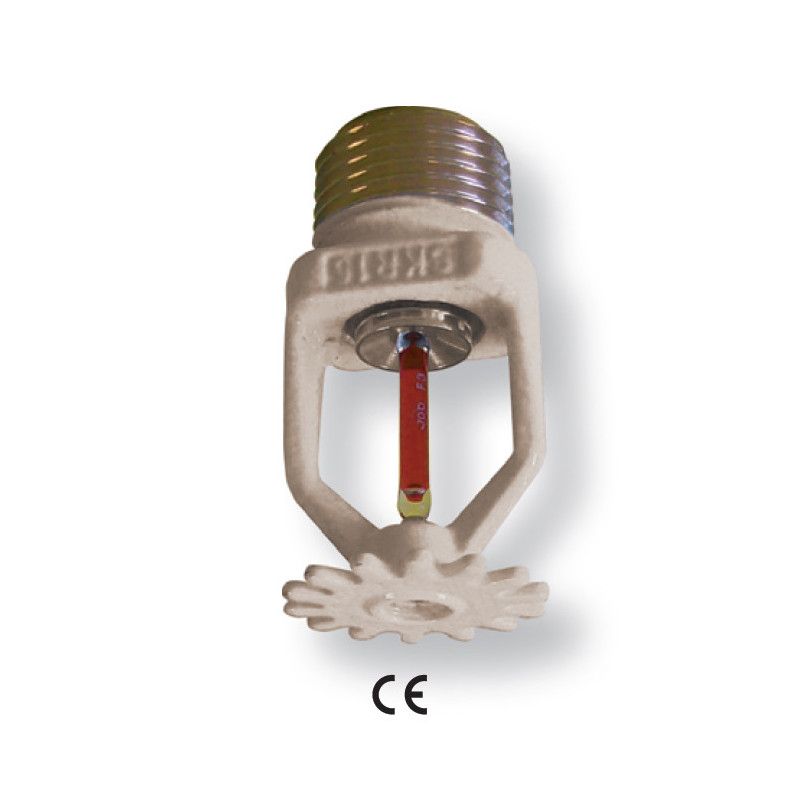

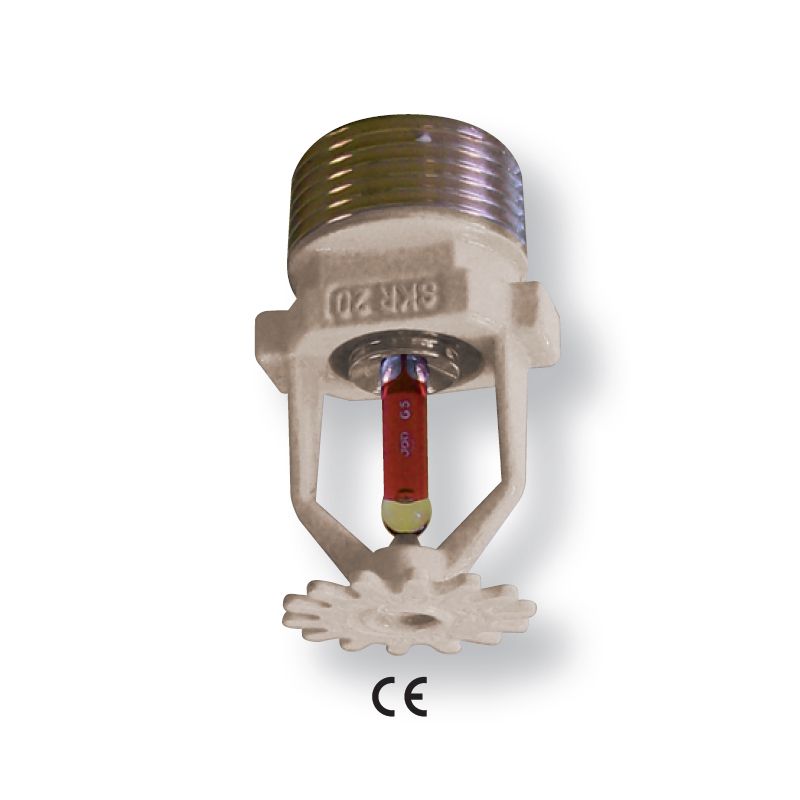

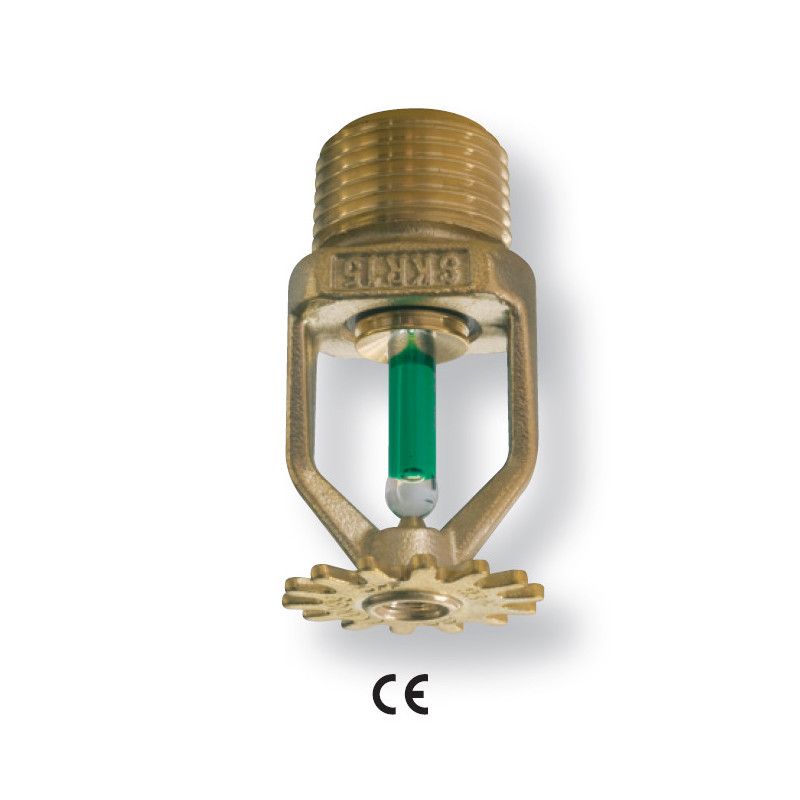

    Sprinkler Pendent

    PENDENT SPRINKLER 1/2” SP - 2011/305/UE (CPR) - UNI EN 12259-1 with water paraboloid distribution from the ceiling, suitable for supplying the water needed when the jet is set downwards against the washer. It suits to a… See more...
    Request informations
    Options
    Connection: 1/2" (K80) - 3/4" (K115)
    Response: G5 (standard response) - F3 (quick response)

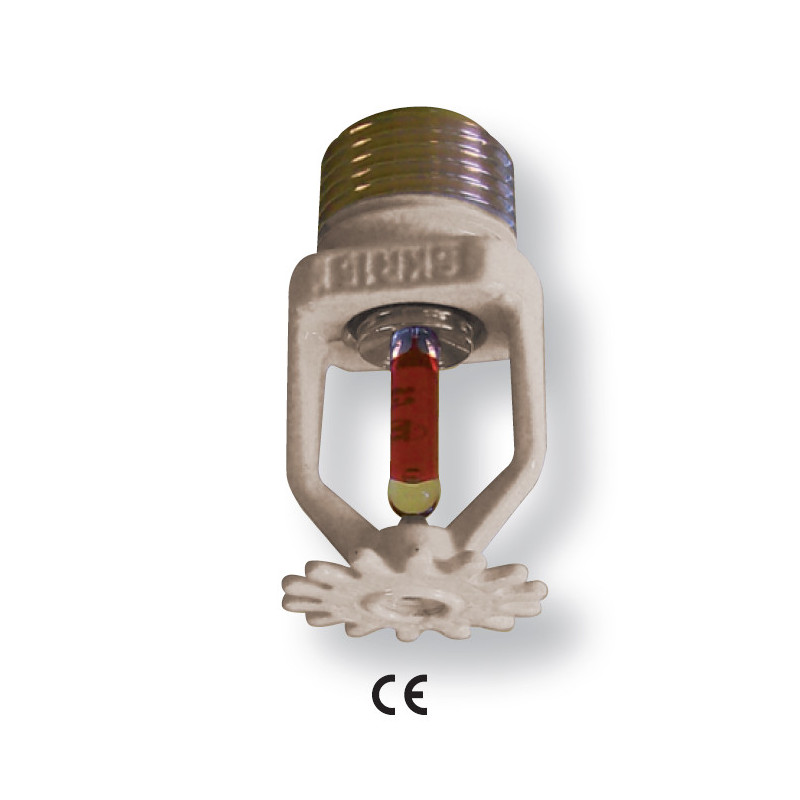

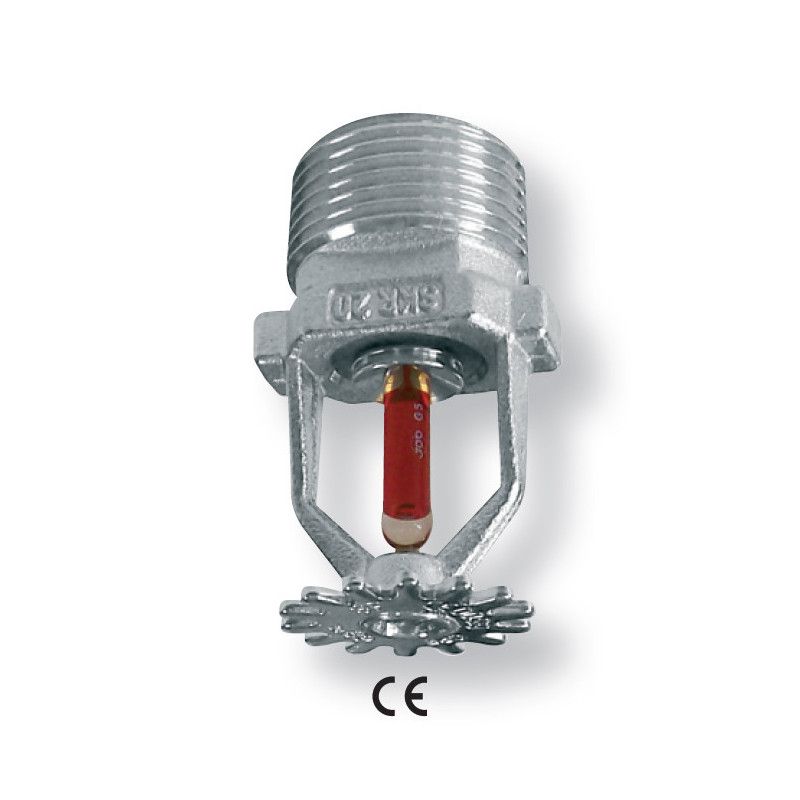

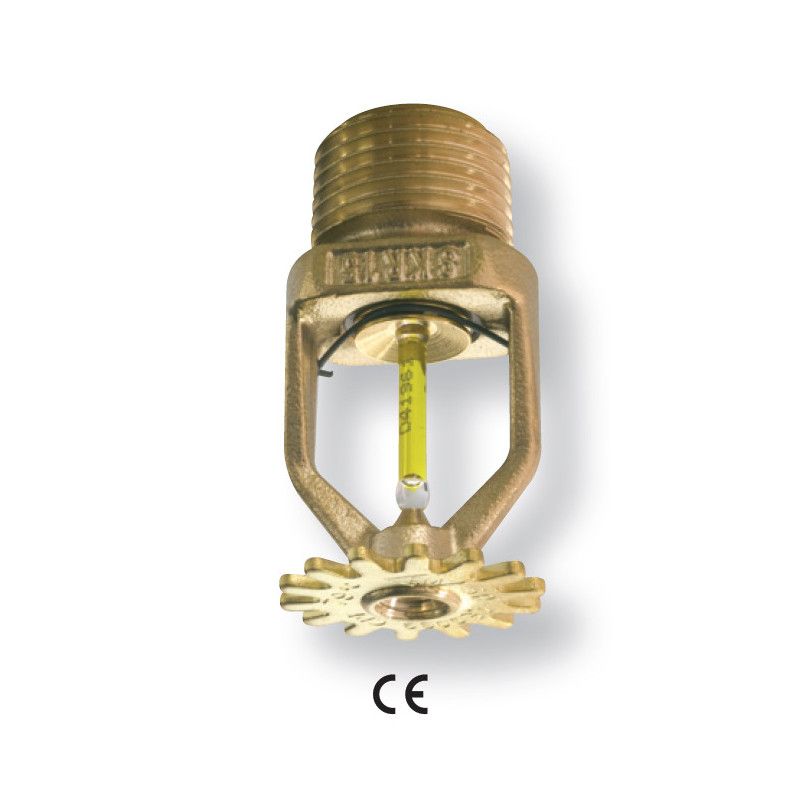

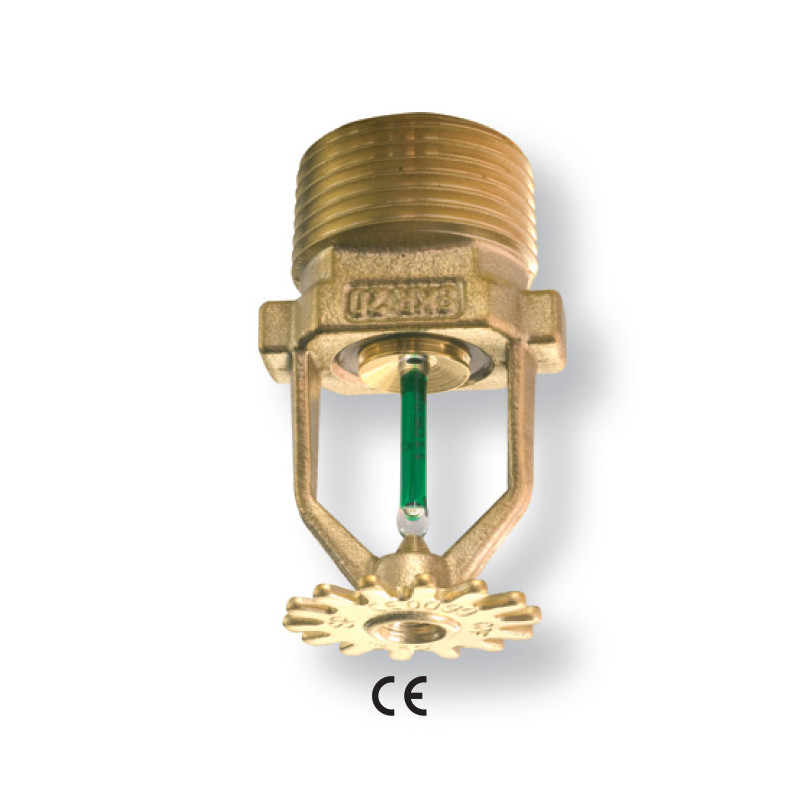

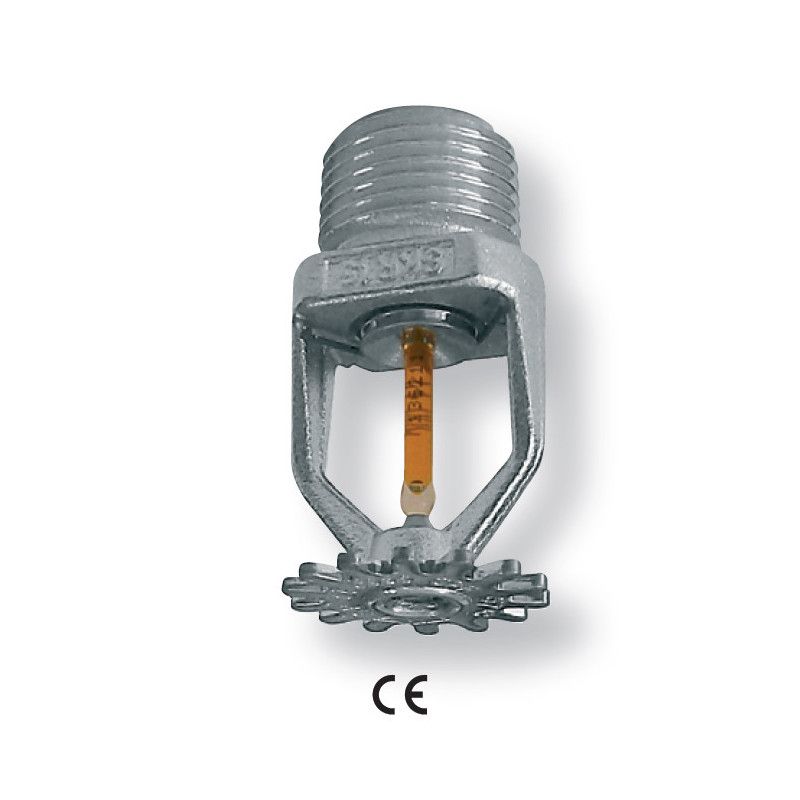

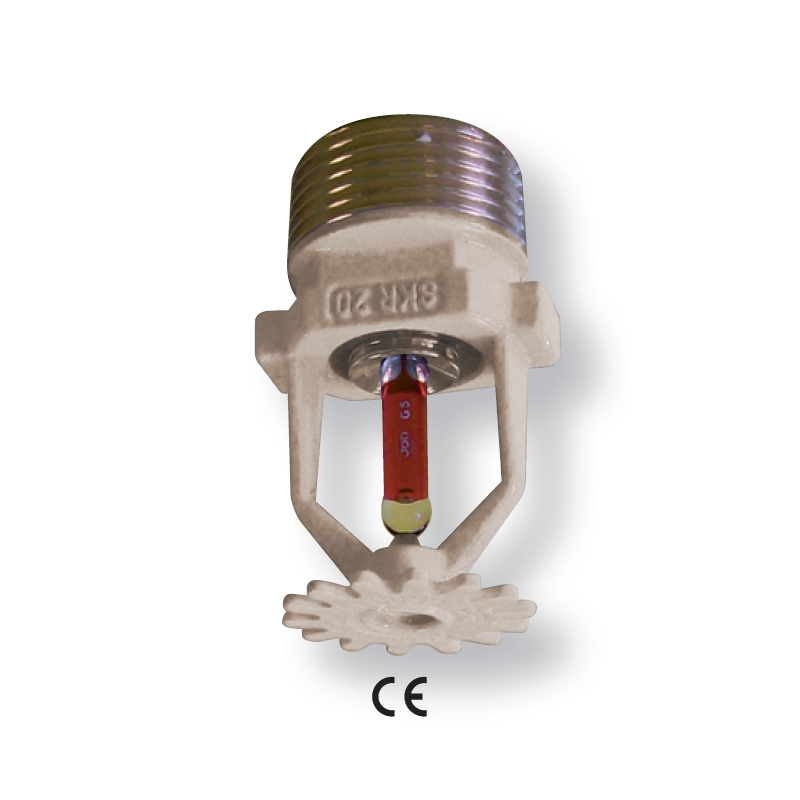

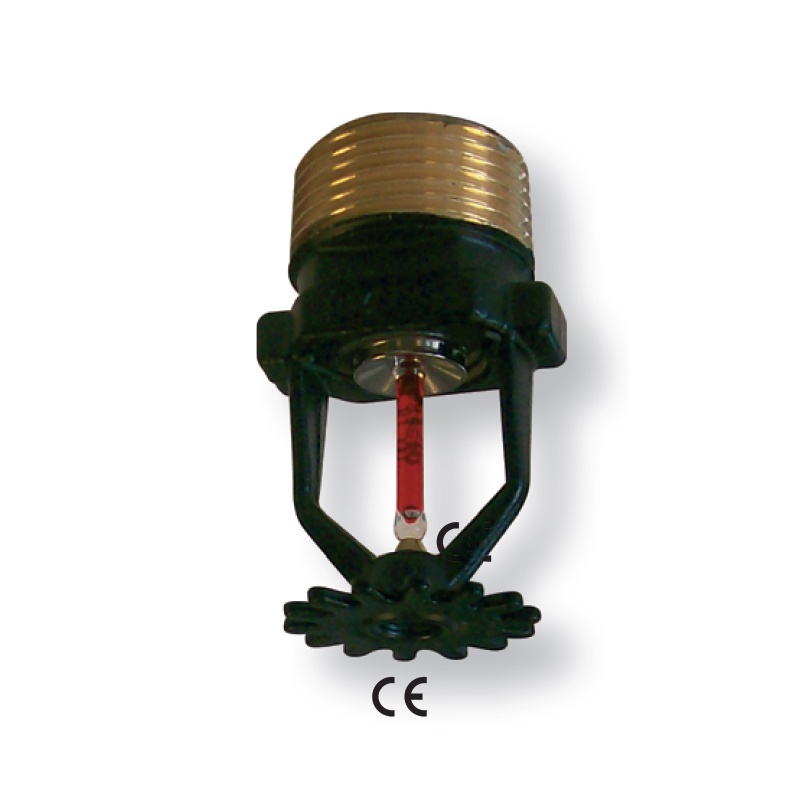

    Finish: Raw - Chrome-plated - White painted - Black painted
    Activation Temperature: Click here
    Also available without bulb
    Downloads
    To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.
    Code Inlet Finishing Color K Factor Operating Temperature Response
    6320900210 1/2" Brass 80 57 °C = 135 °F Fast Response (F3)
    6320900211 1/2" Brass 80 68 °C = 155 °F Fast Response (F3)
    6320900212 1/2" Brass 80 79 °C = 175 °F Fast Response (F3)
    6320900213 1/2" Brass 80 93 °C = 200 °F Fast Response (F3)
    6320900214 1/2" Brass 80 141 °C = 286 °F Fast Response (F3)
    6320900240 1/2" Brass 80 57 °C = 135 °F Standard Response (G5)
    6320900241 1/2" Brass 80 68 °C = 155 °F Standard Response (G5)
    6320900242 1/2" Brass 80 79 °C = 175 °F Standard Response (G5)
    6320900243 1/2" Brass 80 93 °C = 200 °F Standard Response (G5)
    6320900244 1/2" Brass 80 141 °C = 286 °F Standard Response (G5)
    6320900245 1/2" Brass 80 182 °C = 360 °F Standard Response (G5)
    6320900341 1/2" Brass 80
    6320900382 3/4" Brass 115
    6320900410 1/2" Brass 80 57 °C = 135 °F Fast Response (F3)
    6320900411 1/2" Brass 80 68 °C = 155 °F Fast Response (F3)
    6320900412 1/2" Brass 80 79 °C = 175 °F Fast Response (F3)
    6320900413 1/2" Brass 80 93 °C = 200 °F Fast Response (F3)
    6320900414 1/2" Brass 80 141 °C = 286 °F Fast Response (F3)
    6320900440 1/2" Brass 80 57 °C = 135 °F Standard Response (G5)
    6320900441 1/2" Brass 80 68 °C = 155 °F Standard Response (G5)
    6320900442 1/2" Brass 80 79 °C = 175 °F Standard Response (G5)
    6320900443 1/2" Brass 80 93 °C = 200 °F Standard Response (G5)
    6320900444 1/2" Brass 80 141 °C = 286 °F Standard Response (G5)
    6320900445 1/2" Brass 80 182 °C = 360 °F Standard Response (G5)

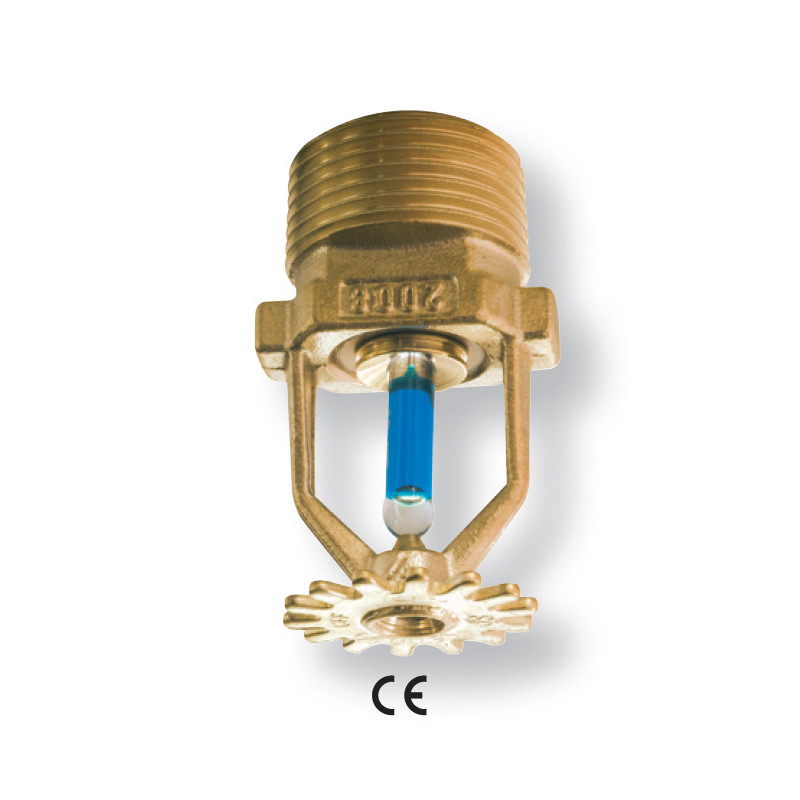

    6320900481 3/4" Brass 115 57 °C = 135 °F Standard Response (G5)
    6320900482 3/4" Brass 115 68 °C = 155 °F Standard Response (G5)
    6320900483 3/4" Brass 115 79 °C = 175 °F Standard Response (G5)
    6320900484 3/4" Brass 115 93 °C = 200 °F Standard Response (G5)
    6320900485 3/4" Brass 115 141 °C = 286 °F Standard Response (G5)
    6320900486 3/4" Brass 115 182 °C = 360 °F Standard Response (G5)
    6320900487 3/4" Brass 115 57 °C = 135 °F Fast Response (F3)
    6320900488 3/4" Brass 115 68 °C = 155 °F Fast Response (F3)
    6320900489 3/4" Brass 115 79 °C = 175 °F Fast Response (F3)
    6320900490 3/4" Brass 115 93 °C = 200 °F Fast Response (F3)
    6320900491 3/4" Brass 115 141 °C = 286 °F Fast Response (F3)
    63B0900410 1/2" Painted White 80 57 °C = 135 °F Fast Response (F3)
    63B0900411 1/2" Painted White 80 68 °C = 155 °F Fast Response (F3)
    63B0900412 1/2" Painted White 80 79 °C = 175 °F Fast Response (F3)
    63B0900413 1/2" Painted White 80 93 °C = 200 °F Fast Response (F3)
    63B0900414 1/2" Painted White 80 141 °C = 286 °F Fast Response (F3)
    63B0900440 1/2" Painted White 80 57 °C = 135 °F Standard Response (G5)
    63B0900441 1/2" Painted White 80 68 °C = 155 °F Standard Response (G5)
    63B0900442 1/2" Painted White 80 79 °C = 175 °F Standard Response (G5)
    63B0900443 1/2" Painted White 80 93 °C = 200 °F Standard Response (G5)
    63B0900444 1/2" Painted White 80 141 °C = 286 °F Standard Response (G5)
    63B0900445 1/2" Painted White 80 182 °C = 360 °F Standard Response (G5)
    63B0900481 3/4" Painted White 115 57 °C = 135 °F Standard Response (G5)
    63B0900482 3/4" Painted White 115 68 °C = 155 °F Standard Response (G5)
    63B0900483 3/4" Painted White 115 79 °C = 175 °F Standard Response (G5)
    63B0900484 3/4" Painted White 115 93 °C = 200 °F Standard Response (G5)
    63B0900485 3/4" Painted White 115 141 °C = 286 °F Standard Response (G5)
    63B0900486 3/4" Painted White 115 182 °C = 360 °F Standard Response (G5)
    63B0900487 3/4" Painted White 115 57 °C = 135 °F Fast Response (F3)
    63B0900488 3/4" Painted White 115 68 °C = 155 °F Fast Response (F3)
    63B0900489 3/4" Painted White 115 79 °C = 175 °F Fast Response (F3)
    63B0900490 3/4" Painted White 115 93 °C = 200 °F Fast Response (F3)
    63B0900491 3/4" Painted White 115 141 °C = 286 °F Fast Response (F3)

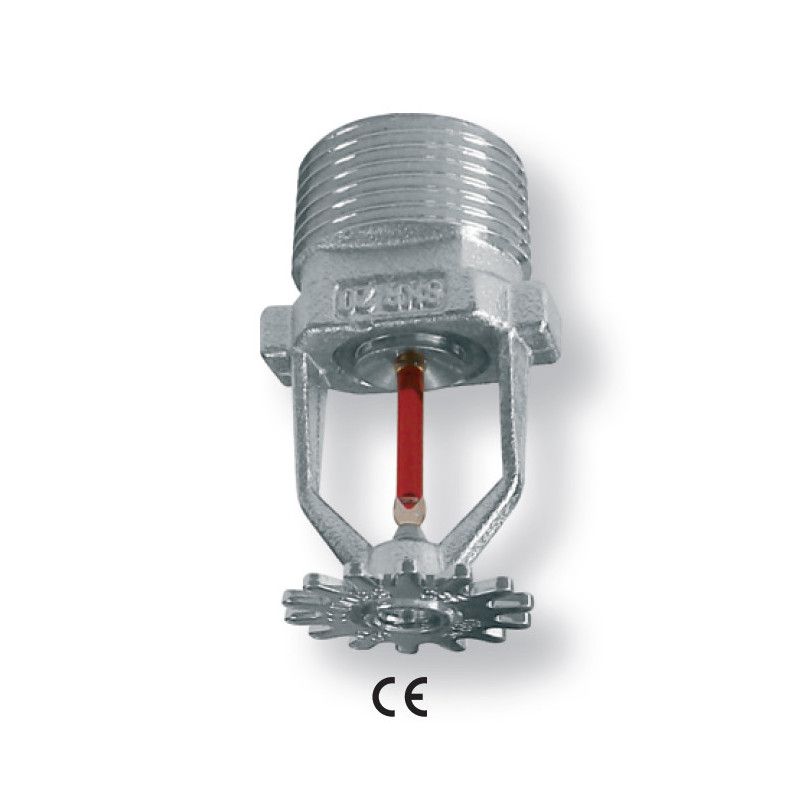

    63C0900210 1/2" Chrome-plated 80 57 °C = 135 °F Fast Response (F3)
    63C0900211 1/2" Chrome-plated 80 68 °C = 155 °F Fast Response (F3)
    63C0900212 1/2" Chrome-plated 80 79 °C = 175 °F Fast Response (F3)
    63C0900213 1/2" Chrome-plated 80 93 °C = 200 °F Fast Response (F3)
    63C0900214 1/2" Chrome-plated 80 141 °C = 286 °F Fast Response (F3)
    63C0900240 1/2" Chrome-plated 80 57 °C = 135 °F Standard Response (G5)
    63C0900241 1/2" Chrome-plated 80 68 °C = 155 °F Standard Response (G5)
    63C0900242 1/2" Chrome-plated 80 79 °C = 175 °F Standard Response (G5)
    63C0900243 1/2" Chrome-plated 80 93 °C = 200 °F Standard Response (G5)
    63C0900244 1/2" Chrome-plated 80 141 °C = 286 °F Standard Response (G5)
    63C0900245 1/2" Chrome-plated 80 182 °C = 360 °F Standard Response (G5)
    63C0900341 1/2" Chrome-plated 80
    63C0900382 3/4" Chrome-plated 115
    63C0900410 1/2" Chrome-plated 80 57 °C = 135 °F Fast Response (F3)
    63C0900411 1/2" Chrome-plated 80 68 °C = 155 °F Fast Response (F3)
    63C0900412 1/2" Chrome-plated 80 79 °C = 175 °F Fast Response (F3)
    63C0900413 1/2" Chrome-plated 80 93 °C = 200 °F Fast Response (F3)
    63C0900414 1/2" Chrome-plated 80 141 °C = 286 °F Fast Response (F3)
    63C0900440 1/2" Chrome-plated 80 57 °C = 135 °F Standard Response (G5)
    63C0900441 1/2" Chrome-plated 80 68 °C = 155 °F Standard Response (G5)
    63C0900442 1/2" Chrome-plated 80 79 °C = 175 °F Standard Response (G5)
    63C0900443 1/2" Chrome-plated 80 93 °C = 200 °F Standard Response (G5)
    63C0900444 1/2" Chrome-plated 80 141 °C = 286 °F Standard Response (G5)
    63C0900445 1/2" Chrome-plated 80 182 °C = 360 °F Standard Response (G5)
    63C0900481 3/4" Chrome-plated 115 57 °C = 135 °F Standard Response (G5)
    63C0900482 3/4" Chrome-plated 115 68 °C = 155 °F Standard Response (G5)
    63C0900483 3/4" Chrome-plated 115 79 °C = 175 °F Standard Response (G5)
    63C0900484 3/4" Chrome-plated 115 93 °C = 200 °F Standard Response (G5)
    63C0900485 3/4" Chrome-plated 115 141 °C = 286 °F Standard Response (G5)
    63C0900486 3/4" Chrome-plated 115 182 °C = 360 °F Standard Response (G5)
    63C0900487 3/4" Chrome-plated 115 57 °C = 135 °F Fast Response (F3)
    63C0900488 3/4" Chrome-plated 115 68 °C = 155 °F Fast Response (F3)
    63C0900489 3/4" Chrome-plated 115 79 °C = 175 °F Fast Response (F3)
    63C0900490 3/4" Chrome-plated 115 93 °C = 200 °F Fast Response (F3)
    63C0900491 3/4" Chrome-plated 115 141 °C = 286 °F Fast Response (F3)

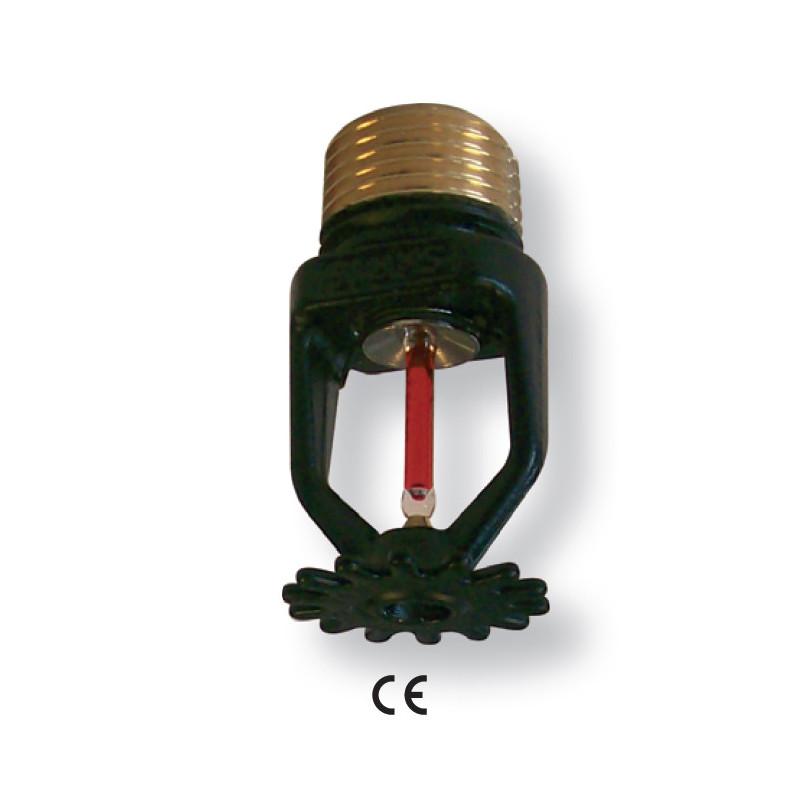

    63N0900410 1/2" Painted Black 80 57 °C = 135 °F Fast Response (F3)
    63N0900411 1/2" Painted Black 80 68 °C = 155 °F Fast Response (F3)
    63N0900412 1/2" Painted Black 80 79 °C = 175 °F Fast Response (F3)
    63N0900413 1/2" Painted Black 80 93 °C = 200 °F Fast Response (F3)
    63N0900414 1/2" Painted Black 80 141 °C = 286 °F Fast Response (F3)
    63N0900440 1/2" Painted Black 80 57 °C = 135 °F Standard Response (G5)
    63N0900441 1/2" Painted Black 80 68 °C = 155 °F Standard Response (G5)
    63N0900442 1/2" Painted Black 80 79 °C = 175 °F Standard Response (G5)
    63N0900443 1/2" Painted Black 80 93 °C = 200 °F Standard Response (G5)
    63N0900444 1/2" Painted Black 80 141 °C = 286 °F Standard Response (G5)
    63N0900445 1/2" Painted Black 80 182 °C = 360 °F Standard Response (G5)

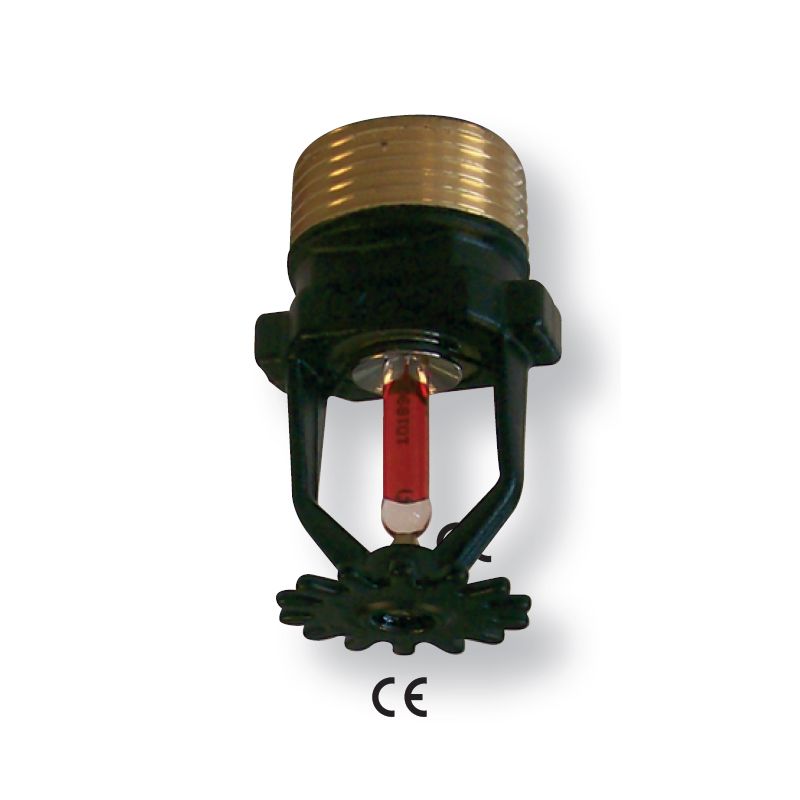

    63N0900481 3/4" Painted Black 115 57 °C = 135 °F Standard Response (G5)
    63N0900482 3/4" Painted Black 115 68 °C = 155 °F Standard Response (G5)
    63N0900483 3/4" Painted Black 115 79 °C = 175 °F Standard Response (G5)
    63N0900484 3/4" Painted Black 115 93 °C = 200 °F Standard Response (G5)
    63N0900485 3/4" Painted Black 115 141 °C = 286 °F Standard Response (G5)
    63N0900486 3/4" Painted Black 115 182 °C = 360 °F Standard Response (G5)
    63N0900487 3/4" Painted Black 115 57 °C = 135 °F Fast Response (F3)
    63N0900488 3/4" Painted Black 115 68 °C = 155 °F Fast Response (F3)
    63N0900489 3/4" Painted Black 115 79 °C = 175 °F Fast Response (F3)
    63N0900490 3/4" Painted Black 115 93 °C = 200 °F Fast Response (F3)
    63N0900491 3/4" Painted Black 115 141 °C = 286 °F Fast Response (F3)

    Sprinklers Water Distribution

    Sprinklers Discharge

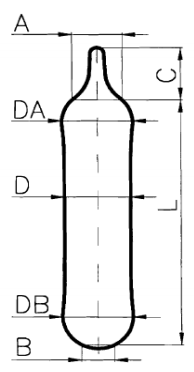

    Sprinkler Bulbs Color

    ColorTemperatureType
    Orange
    57°C = 135°F
    G5-F3
    Red
    68°C = 155°F
    G5-F3
    Yellow
    79°C = 175°F
    G5-F3
    Green
    93°C = 200°F
    G5-F3
    Blue
    141°C = 286°F
    G5-F3
    Mauve
    182°C = 360°F
    G5
